Fast Acting Lift Truck Fuse CNNLE 80V 100A 150A 200A 250A 300A 350A 400A Automotive Bolt Down Fuse
Description
CNNLE fuses are rated for applications up to 80 V dc. As fork lift trucks and electrical vehicle system voltages increase, circuit protection needs to be rated higher than the standard CNN products to handle the increased voltage. The CNNLE is considered very fast-acting for quicker reaction time.
Features/Benefits
* Up to 80 V dc protection
* Window shows fuse status
* Up to 2,700 A interrupting rating
* Compact size saves space
* RoHS compliant and lead (Pb) free
Applications
* Lift trucks
* Scissor lifts
* Pallet movers
* Low voltage battery powered equipment

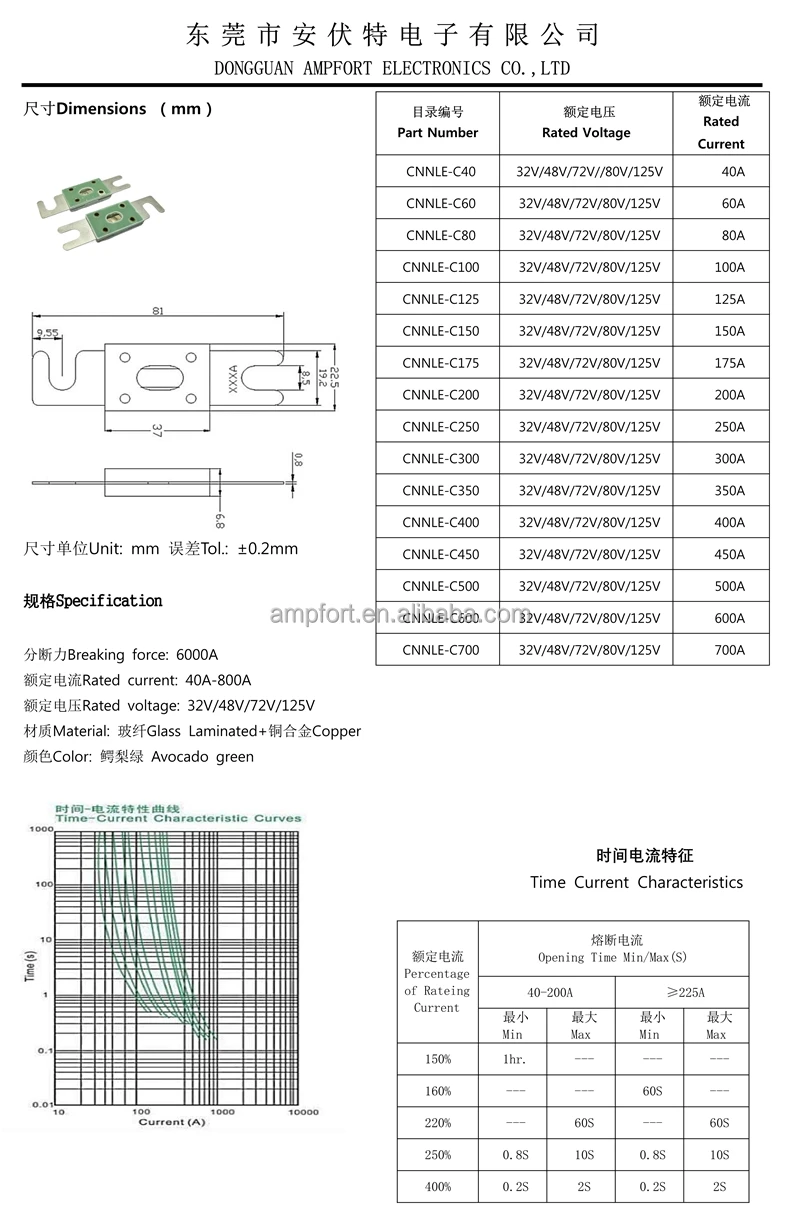

Specification
| Part Number | Rated Voltage | Rated Current |
| CNNLE-C40 | 32V/48V/72V//80V/125V | 40A |
| CNNLE-C60 | 32V/48V/72V/80V/125V | 60A |
| CNNLE-C80 | 32V/48V/72V/80V/125V | 80A |
| CNNLE-C100 | 32V/48V/72V/80V/125V | 100A |
| CNNLE-C125 | 32V/48V/72V/80V/125V | 125A |
| CNNLE-C150 | 32V/48V/72V/80V/125V | 150A |
| CNNLE-C175 | 32V/48V/72V/80V/125V | 175A |
| CNNLE-C200 | 32V/48V/72V/80V/125V | 200A |
| CNNLE-C250 | 32V/48V/72V/80V/125V | 250A |
| CNNLE-C300 | 32V/48V/72V/80V/125V | 300A |
| CNNLE-C350 | 32V/48V/72V/80V/125V | 350A |
| CNNLE-C400 | 32V/48V/72V/80V/125V | 400A |
| CNNLE-C450 | 32V/48V/72V/80V/125V | 450A |
| CNNLE-C500 | 32V/48V/72V/80V/125V | 500A |
| CNNLE-C600 | 32V/48V/72V/80V/125V | 600A |
| CNNLE-C700 | 32V/48V/72V/80V/125V | 700A |
Breaking force: 6000A
Rated current: 40A-800A
Rated voltage: 32V/48V/72V/80V/125V
Material: Glass Laminated+Copper
Color: Avocado green
Package
1 PCS Per 1 Foam Bag, 50 PCS Per 1 PP Bag,2 PP Bags Per 1 Inner Carton,5 Boxes Per 1 Out Carton
